Lifestyle 5 series III
The LS5 series III system includes: one CD5V2 (single disc CD player) music center,
one RC-5 remote control, one AM5P series IV bass module (shown below) and two dual cube satellite speakers.
NOTE: The CD5V2 music center outputs a
digital control signal to the bass module. The older music centers (CD5 and
do not have this function and will not work with the AM-5 series IV bass module. The label below shows the V2 designation.
All 3 of the CD-5 versions (CD5, CD5V, CD5V2) look identical, however the insides are very different.
CD5V2 CD5V2 Label

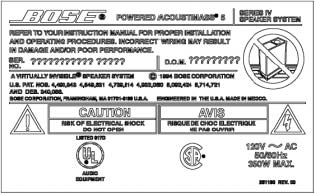

AM-5 series IV Bass Module AM-5 series IV label
We have parts in stock to repair the bass module,
and all the CD-5 music centers.
We don't have any parts for the satellite cube speakers.
