Lifestyle 30 series II

The LS30 Series II system includes: one CD20 (six disc CD player) music center, one RC-25 remote,
one AM30P series II digital bass module and five Jewel Cube satellite speakers.

Note: The AM-30P series II digital bass module looks the same as earlier analog versions but are NOT interchangeable.
          An easy way to tell the difference is to count the number of pins in in the multi-pin connector, 8 pins is the earlier analog version,
          13 pins is the newer digital version.


                                     CD20                                                            AM30P  Series II Digital Base Module

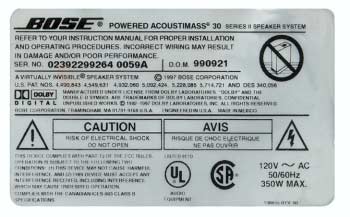

                     AM30P Series II label

We have parts in stock to repair the bass module, RC-25 remote and all the CD20 music centers (see note above)
We don't have any parts for the satellite cube speakers.
